The module "multiply_bsc"
a VHDL implementation of a multiplication algorithm using the 'binary stored-carry' (BSC) number system

The VHDL module "multiply_bsc" (see symbol) calculates the signed product of a multiplicand and a multiplier.

It uses the redundant number system "binary stored-carry" as described in
IEEE TRANSACTIONS ON COMPUTERS, VOL. 39, NO. I, JANUARY 1990
Generalized Signed-Digit Number Systems:
A Unifying Framework for Redundant Number Representations
BEHROOZ PARHAMI, SENIOR MEMBER, IEEE

Using BSC has the advantage that an addition can be implemented which has a limited carry propagation,
which only propagates the carry to the next sum bit but not to the carry out of that next sum bit.

When using BSC the addition operands are not numbers coded in bits, but numbers coded in digits,
which can have the value "00", "01" or "10".

The limited carry causes a circuit structure where the timing does not depend on the width of the operands,
but only depends on the number of consecutive additions which are executed in one clock period.
Compared to a carry-save structure (where the carry is not propagated to the next sum bit, but to the next addition)
the limited carry structure has the worse timing. This is due to the more complicated addition, that has to be
performed in the limited carry addition.

Note that if you are using an advanced synthesis tool such as Synopsys Design Compiler Ultra, neither the
"multiply_bsc" design nor a carry-save structure will give a better timing than the "multiply" design (also
available from this website). Design Compiler Ultra already uses advanced arithmetic optimisations that
implement fast addition structures.

The number of bits of multiplicand and multiplier are configured by generics.
Product, multiplicand and multiplier are numbers in 2's complement format.
The module uses flipflops only for storing the product (and for controlling).
For quick access to the multiplier bits, the multiplier is first stored in the product flipflops and
then replaced by the upcoming product bits through shift operations.
The latency of the module can be configured by a generic independently from the width of the operands.

This means, the module is configurable by generics in order

But of course there is no guarantee that timing closure can be reached with the selected values
for the generics, as the timing depends on the technology which is used at synthesis.

The module "multiply_bsc" was developed with HDL-SCHEM-Editor.

Ports:

Port name Direction Description
res_i input asynchronous reset input, 1-active
Can be clamped to 0 when g_latency=0.
clk_i input clock input
Can be clamped to 0 when g_latency=0.
start_i input This input expects an 1-active impulse of 1 clock cycle width in order to start the calculation.
When g_latency=0 then back to back pulses can be used.
multiplicand_i(g_multiplicand_width-1:0) input Signed multiplicand (g_multiplicand_width is a generic).
The input must be stable during the calculation.
multiplier_i(g_multiplier_width-1:0) input Signed multiplier (g_multiplier_width is a generic).
The input is latched at start=1 and can be changed afterwards.
ready_o output 1-active impulse of 1 clock cycle width, when the calculation is ready (at latency 0 it gets active in the same clock cycle in which start_i gets active).
product_o(g_multiplicand_width+g_multiplier_width-1:0) output Signed product. Valid at ready_o=1. Not stable during calculation.

Generics:

Generic name Minimum Value Maximum Value Description
g_multiplicand_width 2 none Number of bits of the multiplicand
The first bit represents the sign as the operands have to be coded in 2's complement.
g_multiplier_width 2 none Number of bits of the multiplier
The first bit represents the sign as the operands have to be coded in 2's complement.
g_latency_mul 0 none Latency of the multiplication algorithm in clock cycles
When g_latency is 0, then the multiplication is a combinatorial design.
g_latency_convert 0 1 Latency of the submodule multiply_bsc_convert in clock cycles
This module converts the product from a BSC number back into a 2's complement number.
When g_latency_convert is 0, then multiply_bsc_convert is a combinatorial design.

The module "multiply_bsc" is a hierarchical module, which is built by 4 submodules.

Submodule name Functionality

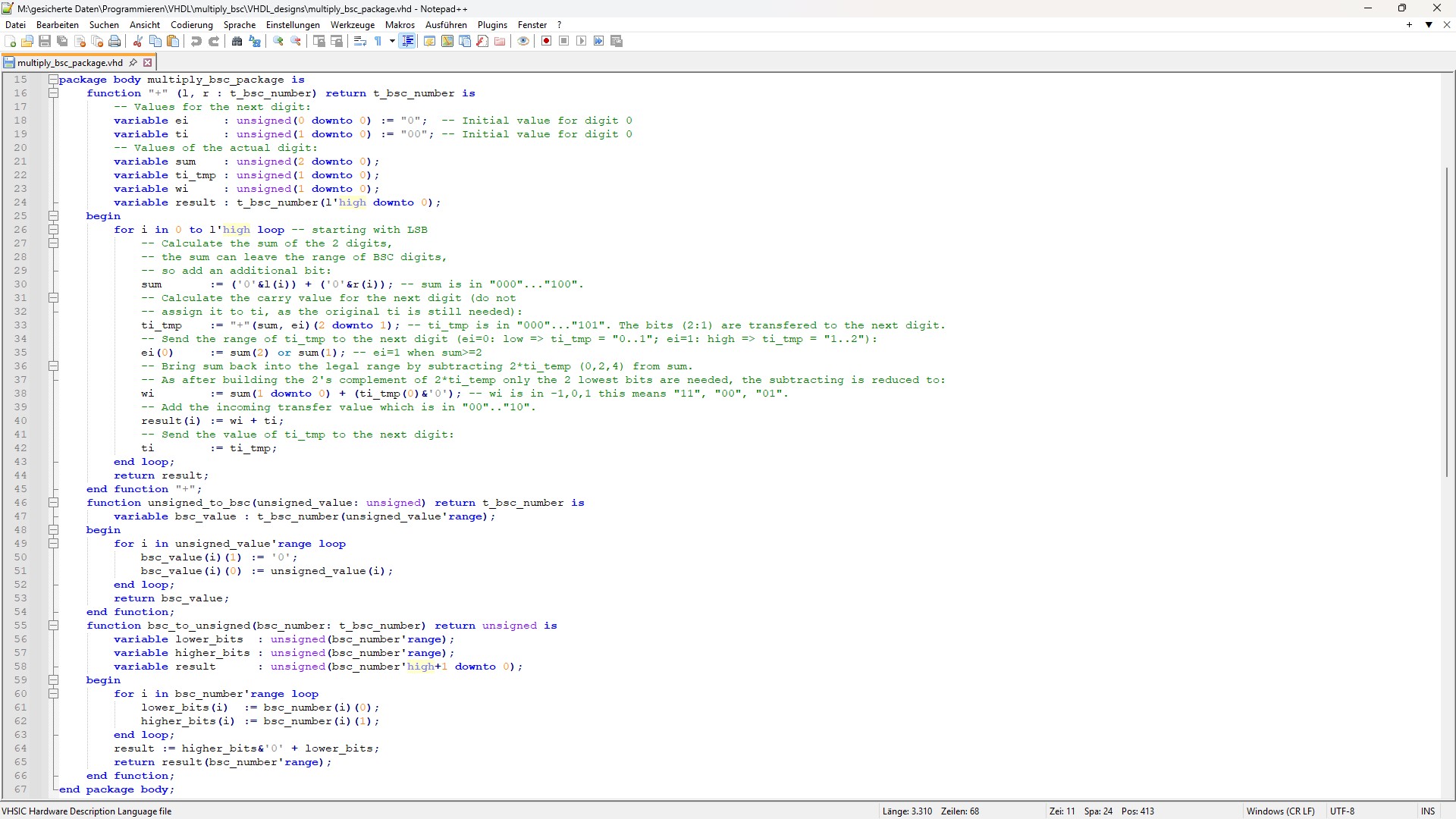

bsc_package

The package bsc_package contains all needed type definitions and functions to handle "binary stored-carry" numbers.
multiply_bsc_negate

The "multiply_bsc_negate" submodule negates the multiplicand.

The negated multiplicand is used by the "multiply_bsc_step" submodule.

If g_latency_mul=0 or g_latency_mul=1 then the "multiply_bsc_negate" submodule is a combinatorial design.
Otherwise the "multiply_bsc_negate" submodule will use a register to store the negated multiplicand, in order to relax the timing.

multiply_bsc_step

The "multiply_bsc_step" module processes 1 bit of the multiplier.
It is instantiated as many times as multiplier bits are processed during 1 clock cycle (which depends on the generic g_latency_mul).

Depending on the multiplier bit processed, 0 or the multiplicand is added to the partial product.

If the processed multiplier bit is the sign bit and has a value of 0, 0 is added to the partial product.
If the processed multiplier bit is the sign bit and has a value of 1, the multiplicand is subtracted from the partial product.
This subtraction compensates for the error of treating the bits of the negative multiplier as if the multiplier were positive.

multiply_bsc_convert

The "multiply_bsc_convert" module converts the product from a BSC number into a 2's complement number.

If g_latency_convert=0 then the "multiply_bsc_convert" submodule is a combinatorial design.
Otherwise the "multiply_bsc_convert" submodule will use a register to store the converted product,
in order to relax the timing at the product_o output.

multiply_bsc_control

The multiply_bsc_control modules generates all the control signals which are needed.
It enables the internal registers for the intermediate or final results.
It identifies the clock period in which the sign bit of the multiplier is handled.
It activates the ready_o output at the end of the calculation.

There are no limitations for the generics g_multiplicand_width and g_multiplier_width (except that they must be bigger than 1).
These generics are most of the time determined by the environment, where the module multiply_bsc is used.

There is also no limitation for the generic g_latency_mul. But this generic determines not only the latency but also
how difficult it will be to reach timing closure: The smaller the value is chosen, the harder it will be to reach timing closure.

If timing closure cannot be reached and g_multiplicand_width is bigger than g_multiplier_width it may be a solution to switch
multiplicand and multiplier. The reason is that the width of the adders which are used by the module multiply_bsc_step depends
on g_multiplicand_width and the smaller this number is, the faster the adders get.

If g_latency_mul is equal to g_multiplier_width, then in each clock cycle 1 bit of the multiplier is handled.

If g_latency_mul is smaller than g_multiplier_width, then in each clock cycle more than bit of the multiplier is handled.
How many bits of the multiplier are handled can be calculated by rounding up g_multiplicand_width/g_latency_mul to the next integer.
Note that handling more than 1 bit of the multiplier in a clock cycle may prevent reaching timing closure.

If g_latency_mul is bigger than g_multiplier_width, then the number of bits of the multiplier is internally increased to g_latency_mul and
again in each clock cycle 1 bit of the (extended) multiplier is handled. Of course this leads to an internal product register which has
the same number of additional bits as the multiplier.

symbol symbol symbol symbol symbol symbol symbol

Source code for HDL-SCHEM-Editor and HDL-FSM-Editor for module "multiply_bsc" and its testbench (Number of downloads = 28 ).
With these files the schematics and the state-diagram of module multiply_bsc can be loaded into HDL-SCHEM-Editor or HDL-FSM-Editor and can be easily read and modified:

All module VHDL-files of the module "multiply_bsc" (Number of downloads = 28 ).
These files were generated by HDL-SCHEM-Editor and HDL-FSM-Editor:

All testbench VHDL-files of the module "multiply_bsc" (Number of downloads = 28 ).
These files were generated by HDL-SCHEM-Editor and HDL-FSM-Editor:

Relocation hints:

You should extract all archives into a folder named "multiply_bsc".

Then you should load the toplevel (probably the testbench) into HDL-SCHEM-Editor.
When you navigate through the design hierarchy by a double click at each symbol,
HDL-SCHEM-Editor will find the submodules on your disk and ask if it can replace
the original path to the submodule by the new one at your disk.
After storing the changed modules the relocation of the source files is ready
(instead you could replace "M:/gesicherte Daten/Programmieren/VHDL/multiply_bsc" in all
"hdl_editor_designs/*.hse" source files by your path to this directory with your editor).

Now you can navigate through the design by HDL-SCHEM-Editor and generate HDL by HDL-SCHEM-Editor for
all modules except multiply_bsc_control, for which the HDL must be generated by HDL-FSM-Editor.
Of course there is only need for generating HDL, if you change something at the modules, because you can find the HDL in VHDL_designs.zip and VHDL_testbenches.zip.

If you want to simulate or modify the modules by HDL-SCHEM-Editor you also must adapt the information in the Control-tab of the toplevel you want to work on.
There you must define a "Compile through hierarchy command", an "Edit command", the path to your HDL-FSM-Editor and a "Working directory".

Change log:

Version 1.3 (28.04.2025):

Version 1.2 (27.04.2025):

Version 1.1 (16.04.2025):

Version 1.0 (11.04.2025):

If you detect any bugs or have any questions,
please send a mail to "matthias.schweikart@gmx.de".
